28 items Patent
Baja temperatura superficial
Doble aislamiento (carcasa de plástico)
Amplio rango de voltaje
Calentamiento dinámico
Fijación con clips
Los calentadores se utilizan en recintos donde se debe evitar la condensación o la temperatura no puede descender por debajo de un valor mínimo. De esta forma se evita la corrosión y se garantiza una temperatura uniforme. Los calentadores están diseñados para funcionamiento permanente.

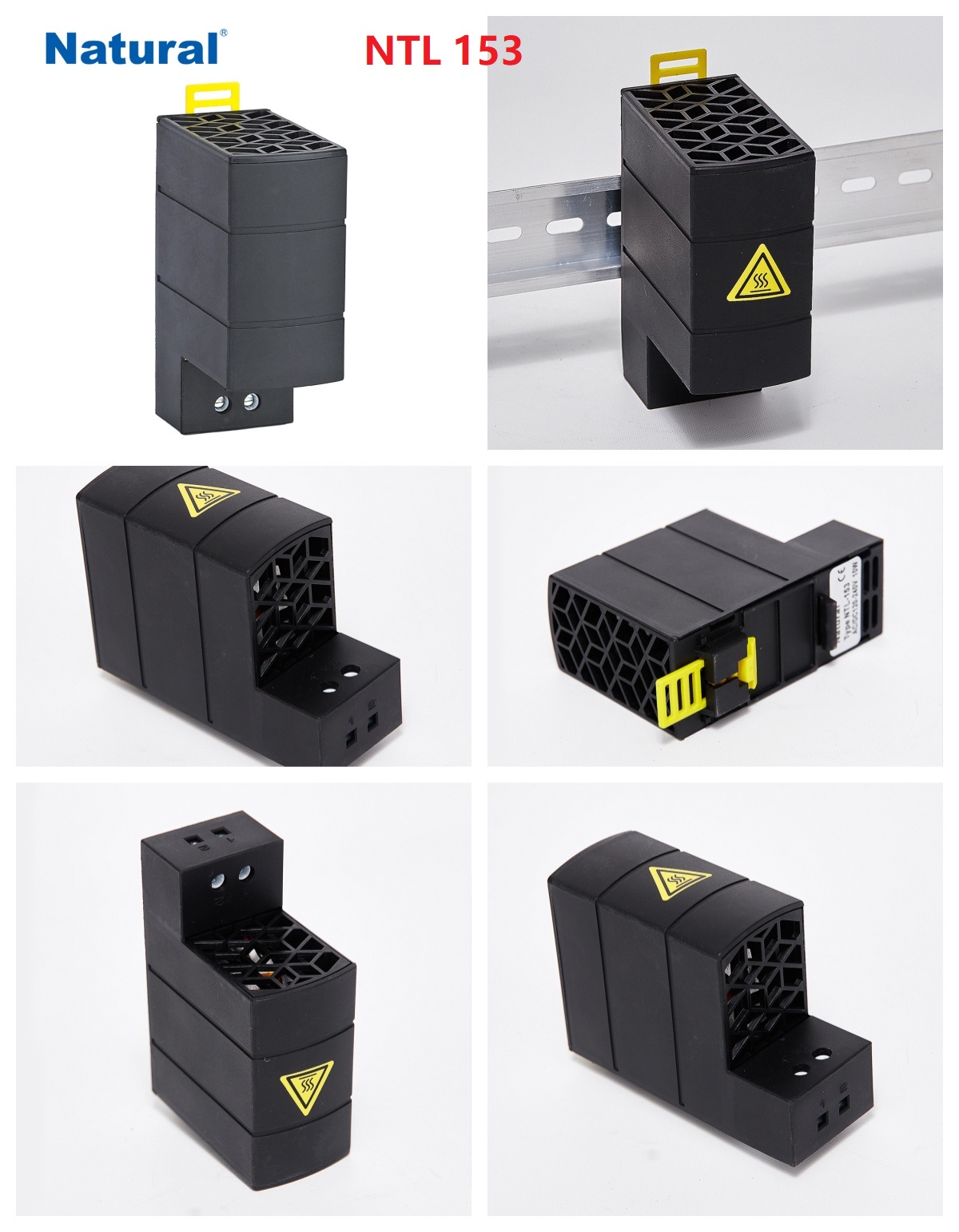

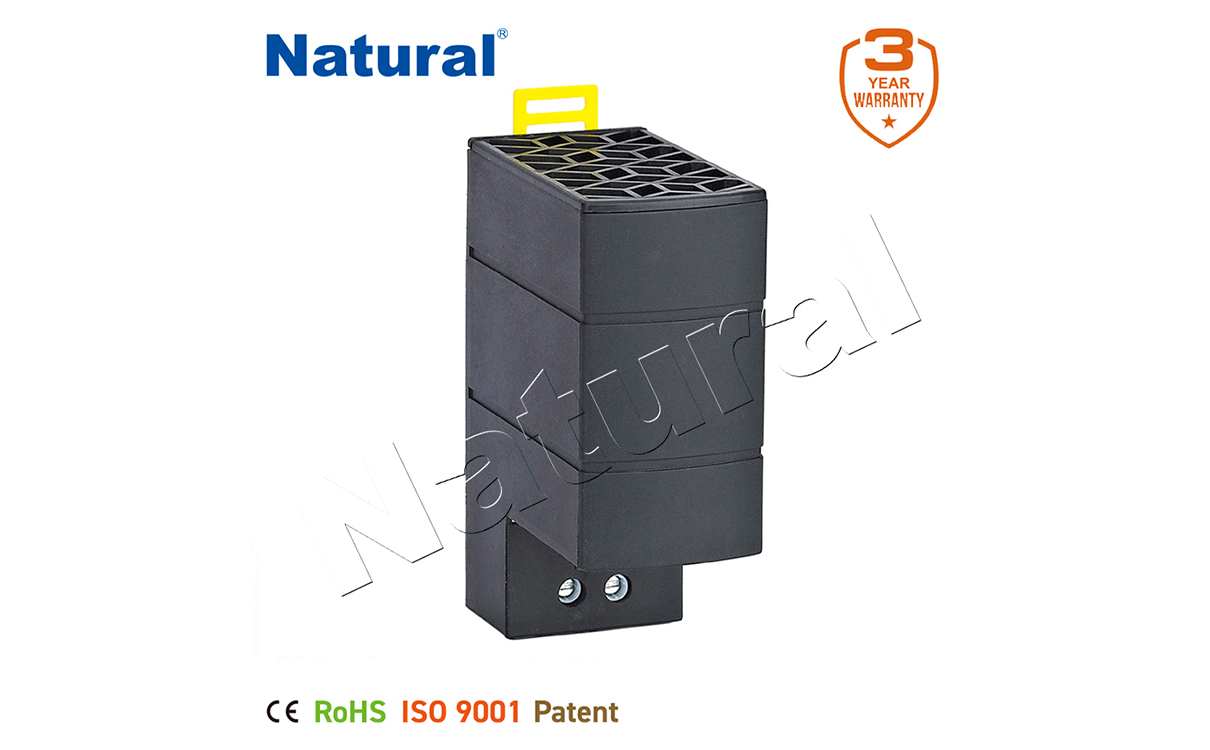

NTL 153 TOUCH-SAFE SMALL HEATER (SEMICONDUCTOR) | |
Operating voltage | 120-260V AC/DC¹ (min. 110V, max. 265V) |
Heating element | PTC resistor - temperature limiting |
Surface temperature | < +85°C (+185°F) (according to VDE 0100), except upper protective grille |
Connection | 2-pole terminal 2.5mm², torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 |
Fitting position | vertical airflow (air outlet up, connection on bottom) |
Operating/Storage temperature | -45°C to +70°C (-49°F to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Note | other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx 10%.

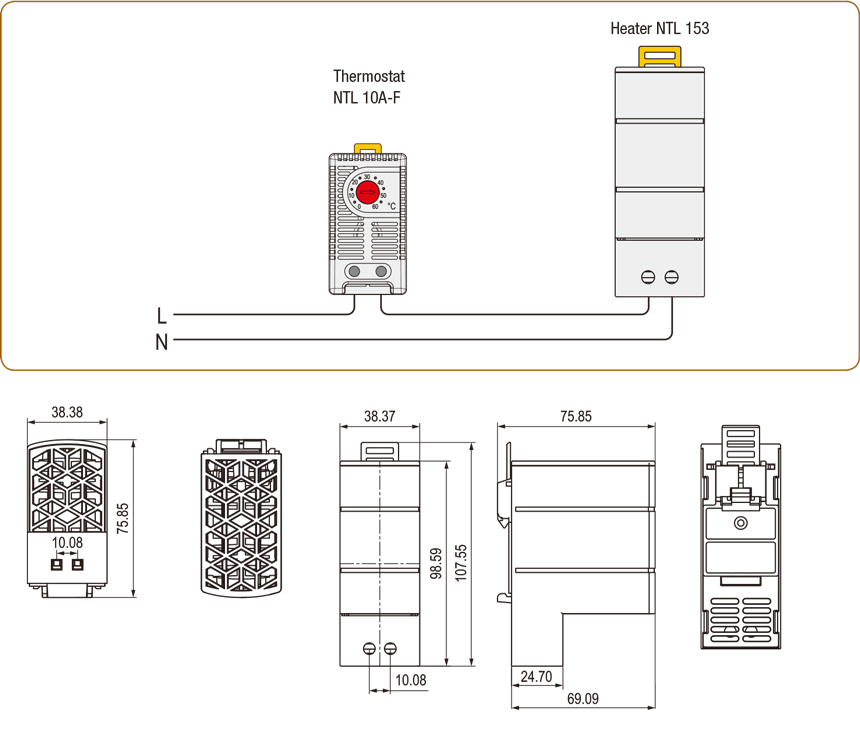

Art. No. | Heating capacity² | Dimensions | Weight (approx.) |
860245 | 10W | 96 x 38 x 79mm | 0.2kg |
860246 | 20W | 96 x 38 x 79mm | 0.3kg |
860247 | 30W | 96 x 38 x 79mm | 0.3kg |
² at +20°C (+68°F) ambient temperature
