With on/off switch
High heating performance
Double insulated
Integrated thermostat
Optional clip or screw fixing

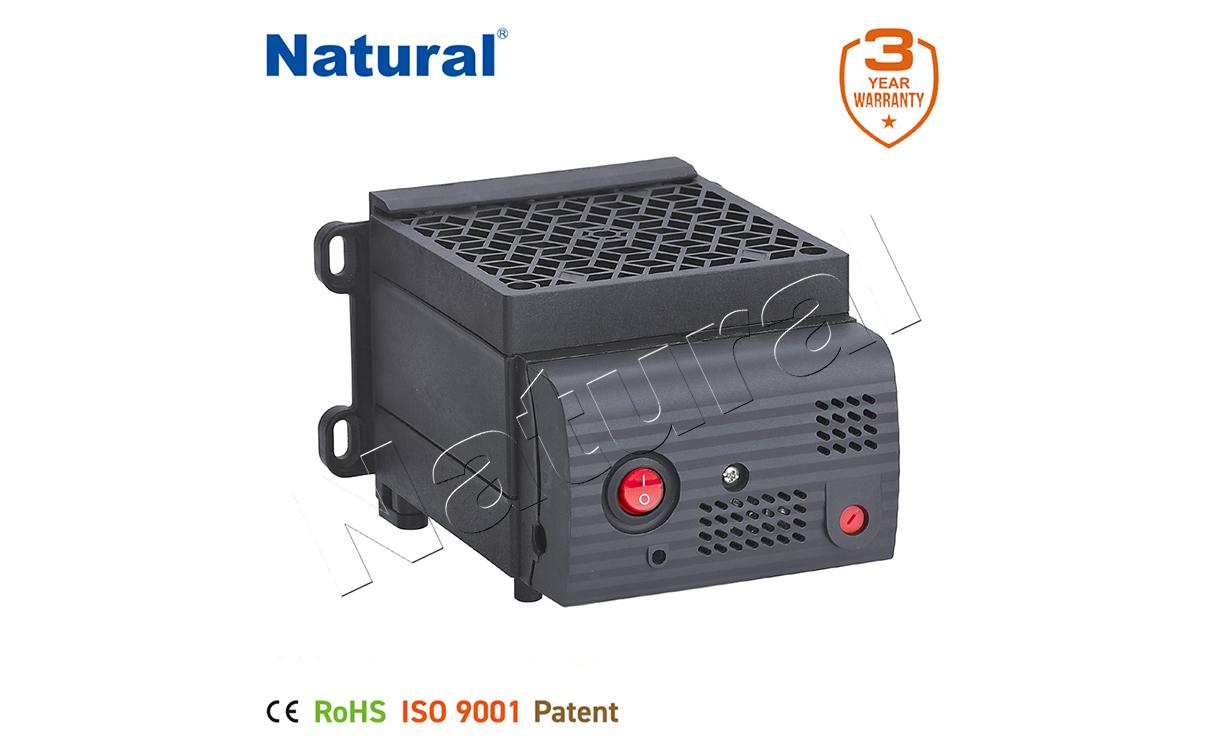

NTL 1200-D | |
Operating voltage | 230VAC or 120VAC |
Heating element | PTC resistor - temperature limiting |
Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
Axial fan, ball bearing | airflow 160m³/h, free flow. service life 50,000h at +25°C (+77°F) |
Connection | 2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 or screw fixing (M6) |
Fitting position | vertical airflow (air outlet up) – other fitting positions possible |
With Thermostat | with thermostat to control temperature |
With on/off switch | can manual power on and off |

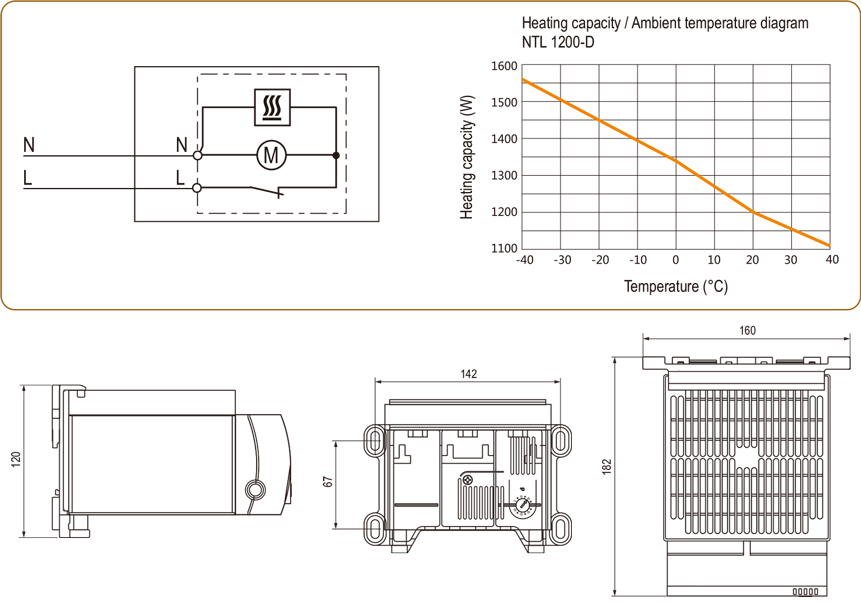

Dimensions | 182×160×120mm |
Weight | approx. 1.3kg |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Art. No. | Model | Operating voltage | Heating capacity | Setting range |
1200D08.0 | Fan Heater with thermostat | 230VAC, 50/60Hz | 800W | 0 to +60°C |
1200D09.0 | Fan Heater with thermostat | 230VAC, 50/60Hz | 900W | 0 to +60°C |
1200D10.0 | Fan Heater with thermostat | 230VAC, 50/60Hz | 1000W | 0 to +60°C |
1200D12.0 | Fan Heater with thermostat | 230VAC, 50/60Hz | 1200W | 0 to +60°C |
1200D08.9 | Fan Heater with thermostat | 120VAC, 50/60Hz | 800W | +32 to +140°F |
1200D09.9 | Fan Heater with thermostat | 120VAC, 50/60Hz | 900W | +32 to +140°F |
1200D10.9 | Fan Heater with thermostat | 120VAC, 50/60Hz | 1000W | +32 to +140°F |
1200D12.9 | Fan Heater with thermostat | 120VAC, 50/60Hz | 1200W | +32 to +140°F |
