Especificaciones generales

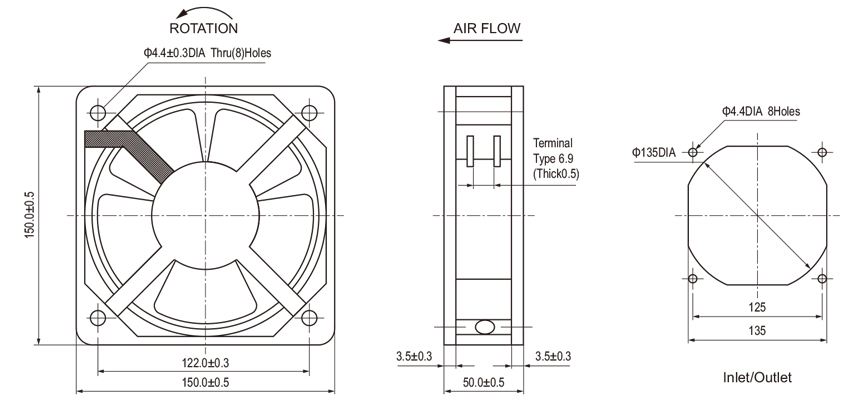

Tamaño: 150×150×50mm
Flujo de aire: 272~336 m 3 /h 160-198 CFM
Peso: 860g
Ruido: 49~59dBA
Impulsor: PBT Negro
Marco: aleación de aluminio
Terminales: 0,5 mm
Cable conductor: AWG#22
Motor: Motor de inducción de polo sombreado
Temperatura de funcionamiento: -10°C~+65°C
Model | Bearing | Voltage | Freq. | Current | Power | Speed | Noise | Air Flow | Phase | Capacitor | |
M³/hr | CFM | ||||||||||
15050-110BH | Ball | 110 | 50/60 | 0.5 | 28 | 2650 | 59 | 336 | 198 | 1 | / |
15050-230BH | Ball | 230 | 50/60 | 0.23 | 26 | 2650 | 59 | 336 | 198 | 1 | / |
15050-380BH | Ball | 380 | 50/60 | 0.13 | 26 | 2650 | 59 | 336 | 198 | 1 | / |
15050-110SH | Sleeve | 110 | 50/60 | 0.5 | 28 | 2650 | 59 | 336 | 198 | 1 | / |
15050-230SH | Sleeve | 230 | 50/60 | 0.23 | 26 | 2650 | 59 | 336 | 198 | 1 | / |
15050-380SH | Sleeve | 380 | 50/60 | 0.13 | 26 | 2650 | 59 | 336 | 198 | 1 | / |
"B" means Ball, "S" means Sleeve,
Current, Speed can be customer made
