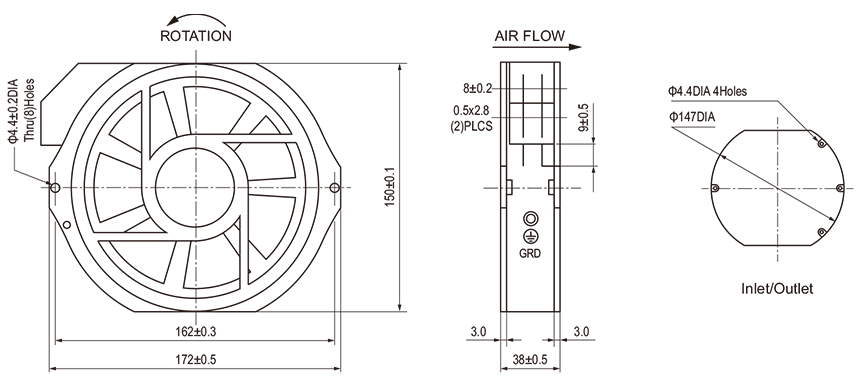

Size: 172×150×38mm
Airflow:306~376m3/hr 182-223CFM
Weight: 800g
Noise: 54~58dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22
Motor: Capacitor-Run Induction Motor
Using Life: 50000 Hours
Operation Temperature: -10°C~+70°C
Specific Parameters
Model | Bearing | Voltage | Freq. | Current | Power | Speed | Noise | Air Flow | Phase | Capacitor | |
M³/hr | CFM | ||||||||||
17038-110B | Ball | 110 | 50/60 | 0.12 | 26 | 2800 | 58 | 376 | 223 | 1 | 3.3μf/250V |
17038-230B | Ball | 230 | 50/60 | 0.12 | 26 | 2800 | 58 | 376 | 223 | 1 | 1.0μf/450V |
17038-380B | Ball | 380 | 50/60 | 0.08 | 26 | 2800 | 58 | 376 | 223 | 3 | / |
"B" means Ball,
Current, Speed can be customer made
